Single needle

Lower drop | Needle feed | Foot feed | Zig-Zag
21825

Flat bed sewing machines with lower drop

Single needle flat bed sewing machines with lower drop feed for common operations. Machines are suitable for sewing curtains, cloths, shirts, blouses, jeans, artificial leather, leather, etc.

01

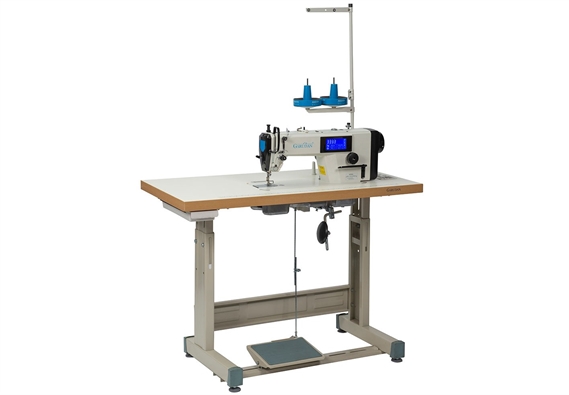

GF-1115-147 LM

One needle flat bed sewing machine with LCD touch screen, lower drop feed, automatic thread trimming and presser foot lift, LED lighting and servomotor incorporated in the machine head. Hook with 21 mm bobbin diameter. Faster machine start-up helps to increase productivity.

Leaflet [394,43 KB]

02

GF-1115-447 MH

One needle flat bed sewing machine with LCD touch screen, lower drop feed, automatic thread trimming and presser foot lift, LED lighting and servomotor incorporated in the machine head. Hook with 26 mm bobbin diameter. Faster machine start-up helps to increase productivity.

Leaflet [394,43 KB]

03

GF-1116-143 LM

Single needle high-speed industrial sewing machine with servo-motor, lower drop feed and switch on/off material cutting. When the material cutting is switched off, machine can be used as standard machine.

Leaflet [1,05 MB]

04

GF-1116-147

Single needle high-speed industrial sewing machine with lower drop feed. Machine is equipped with thread trimmer, wiper, programmable backtacking, foot lifter, servo-motor and switch on/off material cutting.

Leaflet [1,05 MB]

21831

Flat bed sewing machines with needle feed

Single needle flat bed sewing machines with lower drop feed for common operations. Machines are suitable for sewing curtains, cloths, shirts, blouses, jeans, artificial leather, leather, etc.

01

GF-1107-147 MH

Basic model of single needle sewing machines with lower drop and needle feed equipped with thread trimmer, wiper, programmable backtacking, foot lifter, integrated LED light and built-in servo-motor. Suitable for each kind of textile production.

Leaflet [391,67 KB]

02

GF-1117-143 MH

Single needle sewing machines with lower drop and needle feed equipped with standard hook. Machine is suitable for sewing medium heavy materials and technical materials.

Leaflet [415,8 KB]

03

GF-1117-443 H

Jednojehlový šicí stroj s jehelním a ponorným podáváním. Velkoprůměrový chapač. Vhodný pro šití středně silných materiálů.

Leaflet [415,8 KB]

04

GF-1117-447 H

Single needle sewing machines with lower drop and needle feed equipped with thread trimmer, wiper, programmable backtacking, foot lifter and servo-motor. Characterized by large capacity hook which is suitable for sewing heavy materials.

Leaflet [415,8 KB]

05

GF-1118-143 LM

Single needle sewing machines with lower drop and needle feed, servo-motor and material cutting. Machine is supplied with 3.2 mm distance between knife and needle as standard and the other distances are available.

Leaflet [1,05 MB]

06

GF-1118-147 LM

Single needle sewing machines with lower drop and needle feed equipped with thread trimmer, wiper, programmable backtacking, foot lifter, servo-motor and material cutting. Machine is supplied with 3.2 mm distance between knife and needle as standard and the other distances are available.

Leaflet [1,05 MB]

21839

Flat bed sewing machines with presser foot feed

We produce flat bed sewing machines with presser foot feed in eight subclasses with length of arm from 26 cm to 100 cm and different kind of hooks such as rotary or barrel hook. Machines are suitable for sewing automotive upholstery, seats, tarps, mattresses, etc.

01

GF-1130-4412 MH

Single needle machine with servo-motor, bottom, needle and alternating feed. Characterized by large capacity hook and pneumatic foot lift. Suitable for sewing heavy materials such as upholstery, tents, etc.

Leaflet [366,57 KB]

02

GF-1130-448 MH/L34

Single needle flat bed sewing machine with bottom, needle and alternating feed. Enlarged working space, longer arm and automatic functions accelerate production. The machine is suitable for precision sewing of upholstery, sports accessories, shoes, furnishings etc.

Leaflet [648,34 KB]

03

GF-130-443 H

Single needle machine with servo-motor, bottom, needle and alternating feed. Characterized by large capacity hook. Suitable for sewing heavy materials such as upholstery, tents, etc.

Leaflet [636,11 KB]

04

GF-130-543 H/L40

Single needle machine with servo-motor, bottom, needle and alternating feed. Large capacity hook and distance between needle and base 34 cm enable sewing large volume heavy products such as tarps, car seats, saddlery products, sport protectors, etc.

Leaflet [368,86 KB]

05

GF-135-5411H/L41

Single needle machine with servo-motor, lower drop and alternating feed. Machine is equipped with pneumatic foot lifter, backtacking and barrel shuttle hook. Enlarged working space between arm and needle is 410mm.

Leaflet [580,11 KB]

06

GF-135-5412H/L41

Single needle machine with servo-motor, lower drop and alternating feed. Machine is equipped with pneumatic foot lifter and barrel shuttle hook. Enlarged working space between arm and needle is 410mm.

Leaflet [580,11 KB]

07

GF-135-543 H/L41

Single needle machine with servo-motor, lower drop and alternating feed. Machine has enlarged working space 410 mm between arm and needle, and is equipped with barrel shuttle hook.

Leaflet [580,11 KB]

08

GF-137-443 MH/L38

Single needle machine with servo-motor bottom, needle and alternating feed. Machine is characterized by extra-large hook with diameter of bobbin 32mm and enlarged working space between needle and base plate 380x130mm which enables comfortable sewing of voluminous materials.

09

GF-137-448 MH/L38

Single needle machine with bottom, needle and alternating feed equipped with thread trimmer, programmable backtacking, pneumatic foot lifter, climbing device, upper thread clamp and servo-motor. Machine is characterized by extra-large hook with diameter of bobbin 32mm, integrated LED light and enlarged working space between needle and base plate 380x130mm.

Leaflet [636,11 KB]

10

GF-138-448 MH/L100

Single needle machine with bottom, needle and alternating feed equipped with thread trimmer, programmable backtacking, pneumatic foot lifter and servo-motor. Working space between needle and base plate 100cm.

11

GF-138-448 MH/L60

Single needle machine with bottom, needle and alternating feed equipped with thread trimmer, programmable backtacking, pneumatic foot lifter and servo-motor. Working space between needle and base plate 60 cm.

Leaflet [544 KB]

12

GF-139-443 MH/L33

Single needle machine with bottom, needle and alternating feed. The machine is designed for binding and material cutting. The cutting of the material at a distance of 14 mm from the needle and binding is done in one operation. This model is suitable for binding of thick voluminous materials like blankets, decorative pillows, leather products and other heavy materials.

Leaflet [360,26 KB]

13

GF-145-4411 H/L50

Single needle flat bad machine with bottom, needle and alternating feed equipped with programmable backtacking, pneumatic foot lifter and servo-motor. Machine is characterized by extra-large rotary hook with diameter of bobbin 37 mm which enables sewing materials with thickness up to 20 mm, distance between needle and arm 50 cm and stitch length up to 10 mm.

Leaflet [429,31 KB]

14

GF-145-443 H/L50

Single needle flat bad machine with bottom, needle and alternating feed equipped with servo-motor and backtacking operated by hand. Machine is characterized by extra-large rotary hook with diameter of bobbin 37 mm which enables sewing materials with thickness up to 20 mm, distance between needle and arm 50 cm and stitch length up to 10 mm.

Leaflet [429,31 KB]

15

GF-146-4411 H/L50

Single needle flat bad machine with bottom, needle and alternating feed equipped with programmable backtacking, pneumatic foot lifter and servo-motor. Machine is characterized by extra-large rotary hook with diameter of bobbin 37 mm which enables sewing materials with thickness up to 20 mm, distance between needle and arm 50 cm and stitch length up to 16 mm.

Leaflet [429,31 KB]

16

GF-2131-443 MH

Single needle machine with servo-motor lower drop and needle feed. Distance between needle and base 34 cm enables sewing large volume products.

Leaflet [636,11 KB]

17

GF-2131-447 MH

Single needle machine with lower drop and needle feed equipped with thread trimming, programmable backtacking, electromagnetic foot lifter servo-motor and distance between needle and base 34 cm. Machine is suitable for sewing large volume products.

Leaflet [636,11 KB]

18

GF-3131-447 MH

Single needle machine with lower drop and needle feed equipped with thread trimming, programmable backtacking, electromagnetic foot lifter and servo-motor. Machine is suitable for precision sewing of medium-weight materials, such as upholstery, sports accessories, furnishings, etc.

Leaflet [356,49 KB]

21853

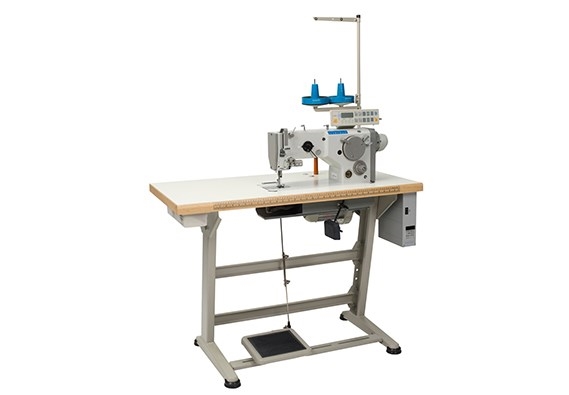

Flat bed Zig-zag sewing machines

Single needle flat bed machines with standard or decorative zigzag stitch with wide up to 12 mm. Suitable for wide using in production of underwear, shoe uppers, fancy goods and upholstery.

01

GZ-539-407 LM

Electronically controlled programmable flat bed zig-zag sewing machine with drop lower feed and stitch wide up to 8 mm. Pattern of zigzag stitch is programmable. Machine is equipped with thread trimming, programmable backtacking, foot lifter. Stitch length up to 1,5 mm.

Leaflet [1008,34 KB]

02

GZ-539-447 MH

Electronically controlled programmable flat bed zig-zag sewing machine with drop lower feed and stitch wide up to 10 mm. Pattern of zigzag stitch is programmable. Machine is equipped with thread trimming, programmable backtacking, foot lifter and large capacity hook. Stitch length up to 5 mm.

Leaflet [1008,34 KB]

03

GZ-5525-443 MH

Single needle sewing machines with drop lower feed for zig-zag decorative patterns stitching. Different patterns can be obtained by easily exchangeable cam. Machine is equipped with large capacity hook.

Leaflet [329,65 KB]

04

GZ-5527-143 LM

Single needle sewing machine with drop lower feed for zig-zag stitching, equipped with manual backtacking and foot lifter operated by knee lever. Diameter of bobbin 21 mm and stitch wide from 0 to 6 mm.

Leaflet [298,48 KB]

05

GZ-5527-147 LM

Single needle sewing machine with drop lower feed for zig-zag stitching, equipped with automatic backtacking, foot lifter and thread trimmer. Diameter of bobbin 21 mm and stitch wide from 0 to 6 mm.

Leaflet [298,48 KB]

06

GZ-5527-443 MH

Single needle sewing machine with drop lower feed for zig-zag stitching, equipped with manual backtacking and foot lifter operated by knee lever. Diameter of bobbin 27 mm and stitch wide from 0 to 10 mm.

Leaflet [298,48 KB]

07

GZ-5527-447 MH

Single needle sewing machine with drop lower feed for zig-zag stitching, equipped with automatic backtacking, foot lifter and thread trimmer. Diameter of bobbin 27 mm and stitch wide from 0 to 10 mm.

Leaflet [298,48 KB]

08

GZ-625-5411 H/L33

Single needle flat bed machine with lower drop feed and barrel shuttle hook for zig-zag or normal stitching according to chosen cam. Machine is equipped with programmable backtacking and pneumatic foot lifter. Working space between needle and arm is 33 cm and stitch length up to 10 mm.

Leaflet [392,84 KB]

09

GZ-625-5412 H/L33

Single needle flat bed machine with lower drop feed and barrel shuttle hook for zig-zag or normal stitching according to chosen cam. Machine is equipped with backtacking and pneumatic foot lifter. Working space between needle and arm is 33 cm and stitch length up to 10 mm.

Leaflet [392,84 KB]

10

GZ-625-543 H/L33

Single needle flat bed machine with lower drop feed and barrel shuttle hook for zig-zag or normal stitching according to chosen cam. Machine is equipped with backtacking operated by hand lever. Working space between needle and arm is 33 cm and stitch length up to 10 mm.

Leaflet [392,84 KB]
